Our volunteers are helping to keep our cycling infrastructure safe and debris-free. We use sweeper trailers made by the folks at bikelanesweeper.com and DIY machines built by our own members.

Report a Dirty Lane Meet the Sweepers

The Community Sweeper Map

Visualize the impact and report locations that need sweeping. Your input directly guides our fleet.

Yes, the google map interface is a pain, we are working on something new as well as integration with a cell phone app. You can always just send a geotagged photo to Mike:
Contact

1. Open the Map

Click the frame icon on the map (upper right) or use the direct link below to open in a new window for full editing control.

Go to Full Map

2. Log In to Edit

A Google account login is required to add or modify pins. This ensures accountability and collaboration.

  • Desktop recommended for best experience.

3. Follow Instructions

Detailed visual guides on marking locations are available. Help us prioritize the most critical areas efficiently!

View Editing Guide

The Sweeper Fleet

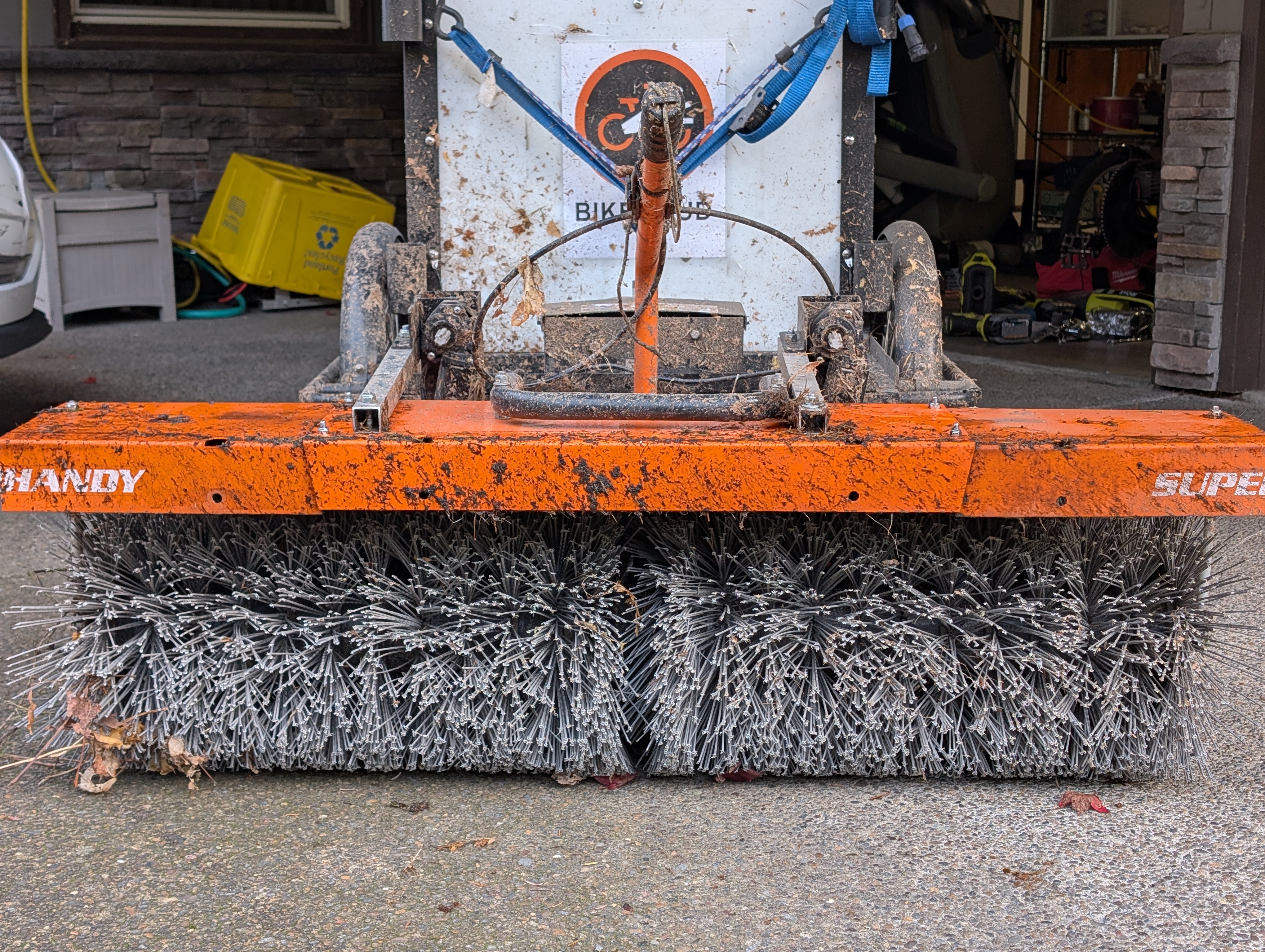

Homemade Sweeper

The Trike Sweeper Beast

Michael Reiss's creation using a Yardmax gas sweeper converted to electric power, doubled in width and mounted on BikeLoudPDX's "Icicle Tricycle" (from Portland's icetrikes.com). Built for power, and maximum debris removal, but capable of low-power, light-touch sweeping over long distances.

Core Specifications

5kWh LiFePO4 Main Battery (52V)
~44" Swept Width
20-80 Miles Sweeping Range Depending on Debris
Electronic Brush Height and Downforce Adjustment
Electronic Brush Lifter (for faster, non-sweeping travel mode)

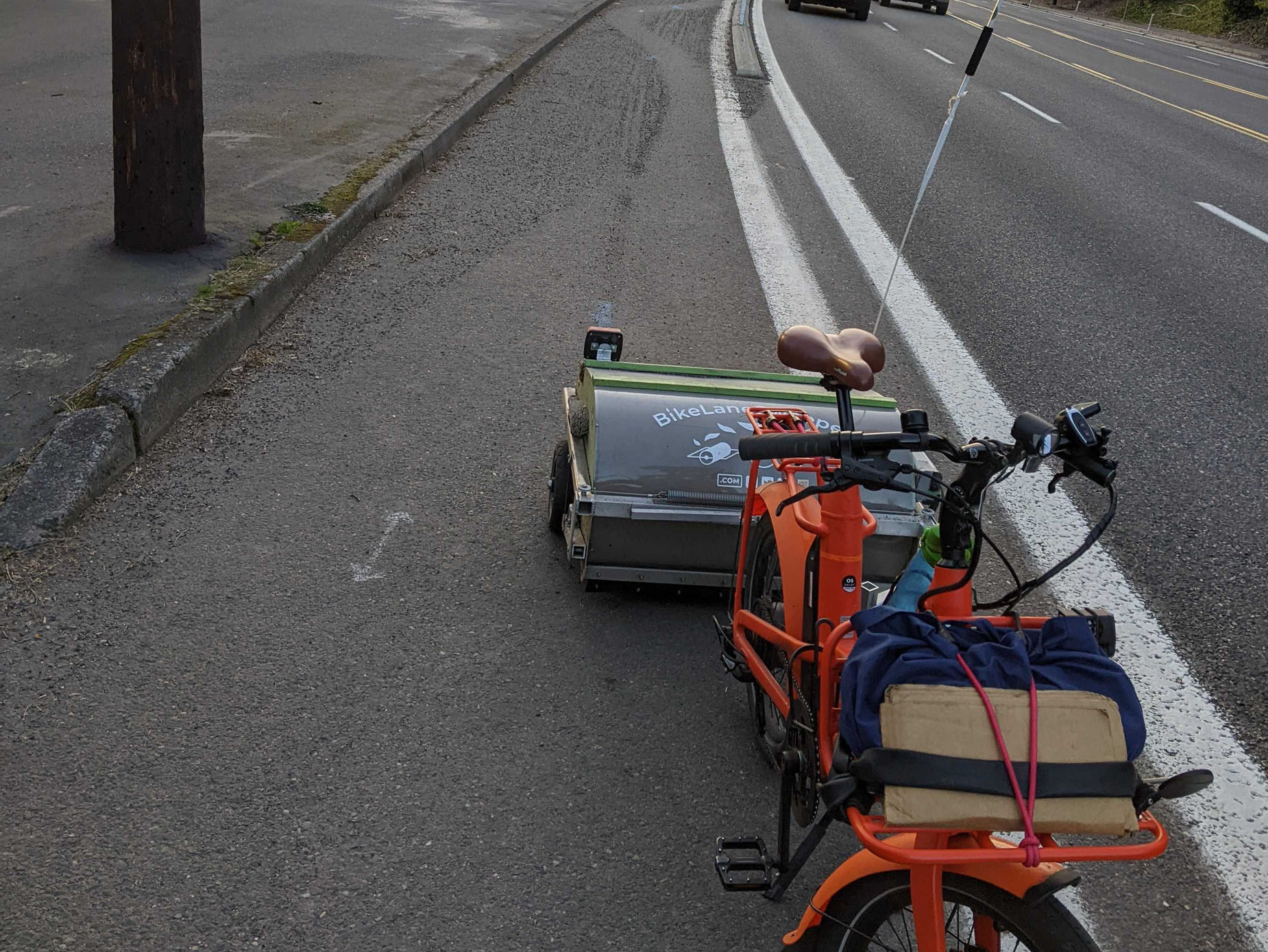

The latest version from bikelanesweeper.com

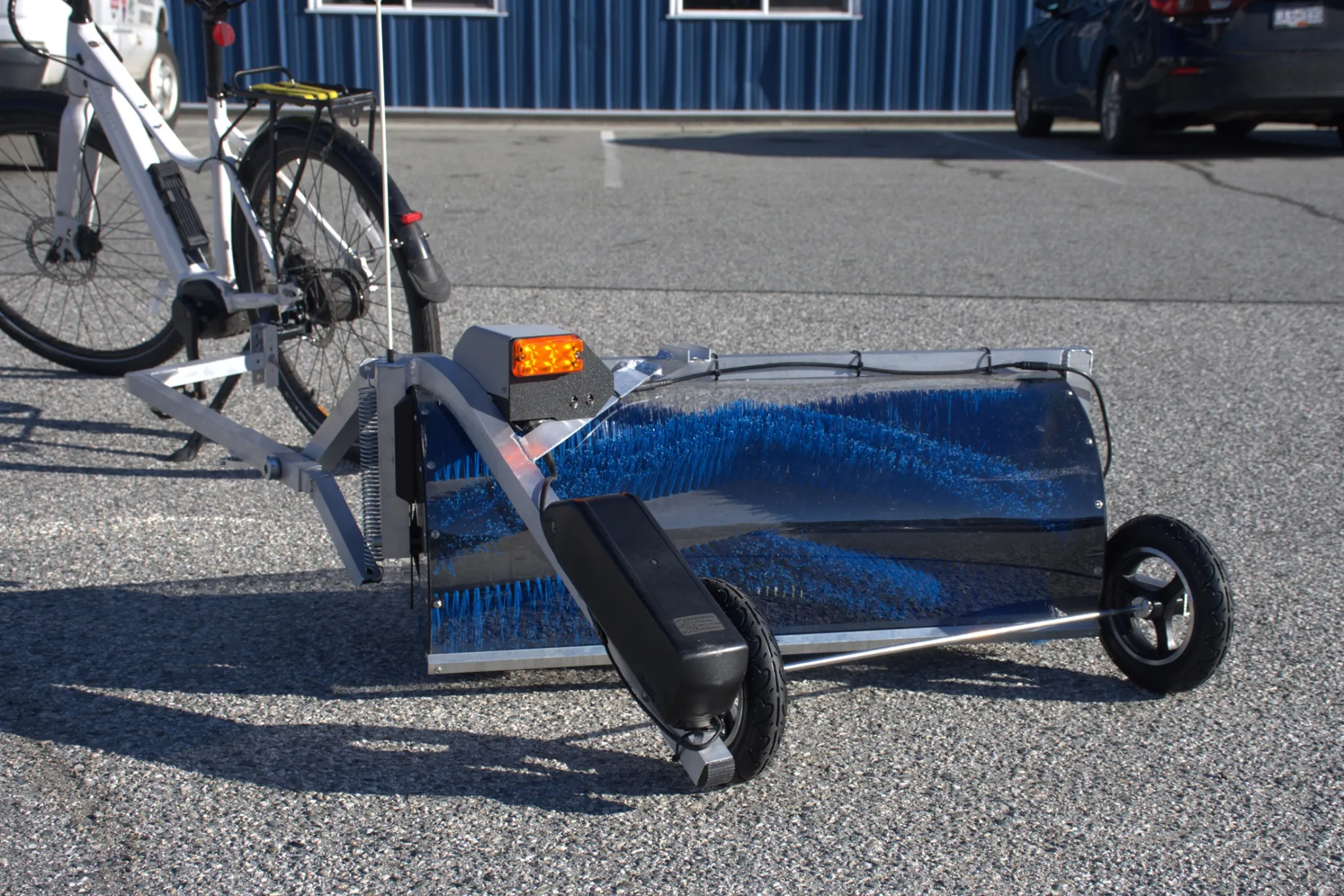

Push-Aside Trailer Sweeper

The simple, effective solution for clearing light debris from the bike lane. Highly portable and built for efficiency at typical cycling speeds.

Operational Details

3-4 Hours Runtime
~33" Swept Width
5-10 mph Optimal Speed
View Instructions
See the Instagram post
The original concept from bikelanesweeper.com

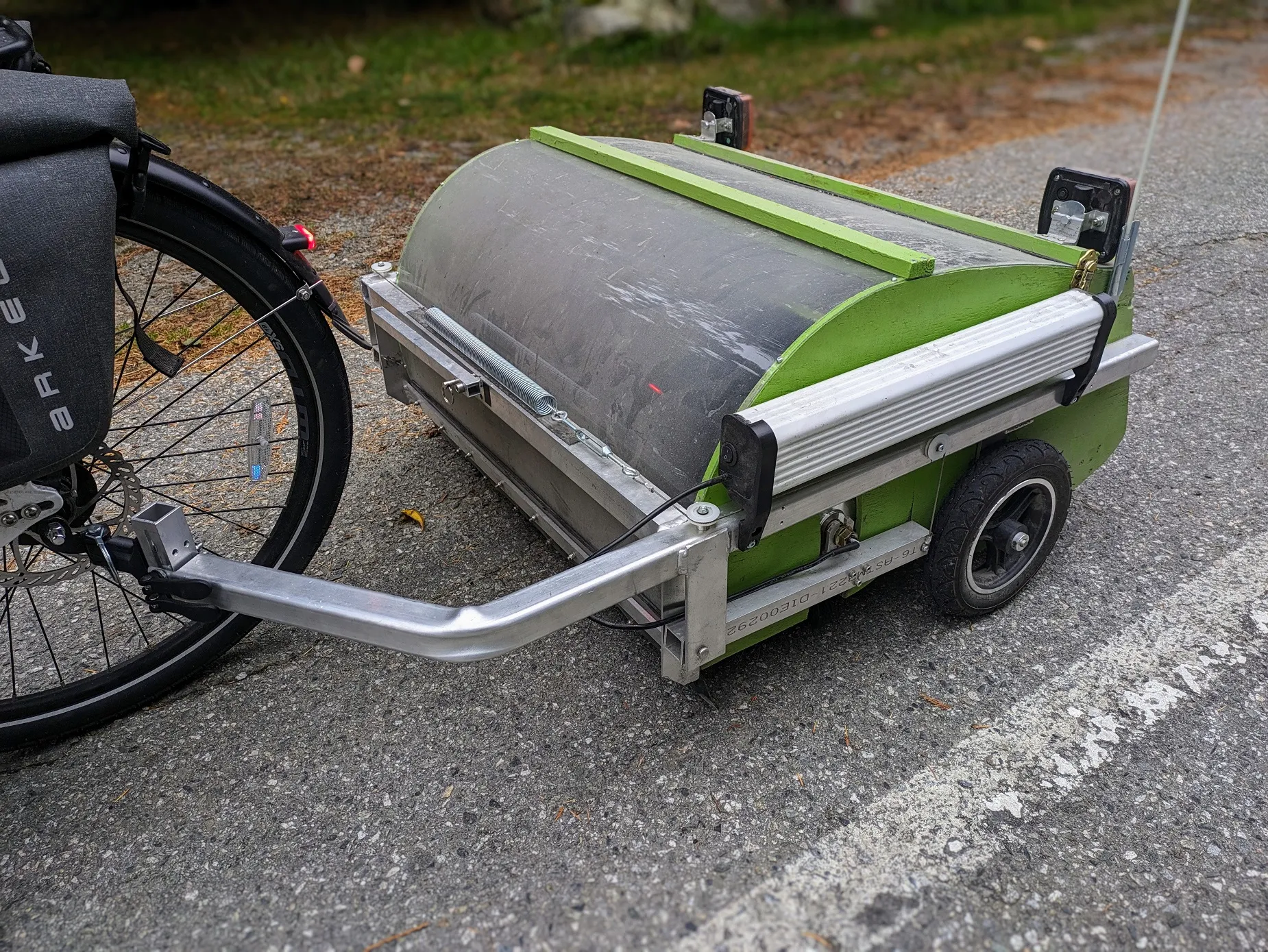

Pick-Up V2 Prototype

This early prototype actively collects debris into integrated bins. It does a great job picking up gravel, glass, and other small objects but it is not suited for leaves.

Collection Focus

Two 5-Gallon Collection Bins
~30" Swept Width
View Prototype Details

Support Sustainable Cycling Infrastructure

Our electric fleet runs on community power. Our city is investing in bike lane specific EV sweeper trucks, but they there are limitations to their reach and the frequency of sweeping. Help us run the sweepers and fund maintenance, new prototypes, and more sweepers closer to YOU. Join us to keep Portland's bike lanes pristine.
